ALLANSON Led Luminaire
Model : Alf16-220v-ww-r 16w 3000k (Warm White)
Complete Fixture (ALF16-120V-WW-R) + (54-262-02-ALT)
Fixture Base Only 54-262-02-ALT
LED Lamp Replacement ALF16-120V-WW-R
Typical Application: Commercial Cooking Hoods
Input Voltage: 120VAC, 60HZ
Input Current: 140mA
Power Consumption: 17W
Color Temperature: Warm White 3500?K
Mounting Distance: Min. 1.2M (4ft) above cooking surface
Typical Brightness (lumens/fixture): 1250 lumens
Location: Suitable for Dry & Wet locations IP67
Operating Temperature: -40?C to +75?C
Fixture Junction Box: Die cast aluminum with 1/2? NPT
Lamp Body: Stainless steel
Gasket: Silicone

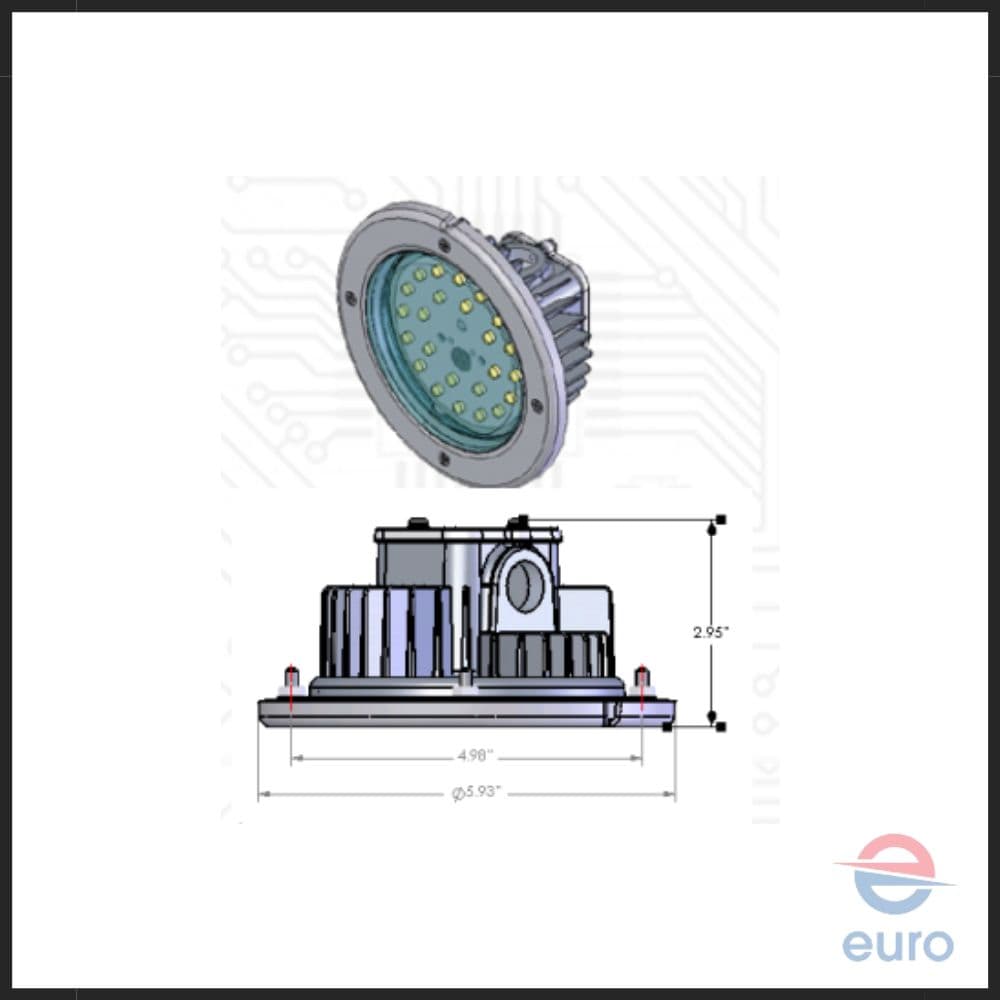

Overall Size: 5.93? Dia. x 2.95? H
Fitting: Junction box accepts standard 1/2? NPT fitting
Warranty: 1 year
Certifications: UL Listed, CSA Approved, NSF and CE
